Auto Shop, Dealership and Service Bay Floors in Riverside, CA

Request a bid with your bay count, square footage and the days your shop can spare, and we will walk the floor with you.

Showroom Floors Versus Service Bays

A showroom and a service bay need two different systems in the same building, because one floor sells cars and the other one takes abuse all day. A showroom gets a smooth, high-gloss build with a UV-stable aliphatic polyaspartic clear that will not amber under the front glass. A service bay wants texture, hardness and chemical resistance, so it gets a quartz broadcast in a high-build epoxy with a tougher topcoat on top.

Dealers in Riverside and Diamond Bar often ask for one look across both rooms.

Lifts, Trench Drains and Wash Bays

Shop floors fail first at the anchor plates, the grates and the detail bays, so we detail them before the field gets coated on any Norco or Eastvale job. Two-post and four-post lift bases get the coating carried tight to the anchor plates, never stopped short where oil can creep under the edge. Trench drain lips get a sloped transition so water runs into the grate instead of sitting at the coating edge. Detail and wash bays take constant water, soap and wheel cleaner, so they get a quartz broadcast and a grit-loaded topcoat that grips a wet boot.

Service bay and showroom floors in Riverside are typically budgeted per section, at an estimated $5,500 to $14,000 for each 1,000 to 2,000 sq ft, and slab condition, oil saturation and the topcoat grade move the number most. A two-section job across a larger service drive typically lands at an estimated $14,000 to $24,000, phased so the shop never closes all at once.

Every figure above is a budgetary estimate for Riverside County shops and is subject to change. Your written quote, confirmed on bid after the floor walk and a look at how much oil the slab holds, sets the final price and the install schedule.

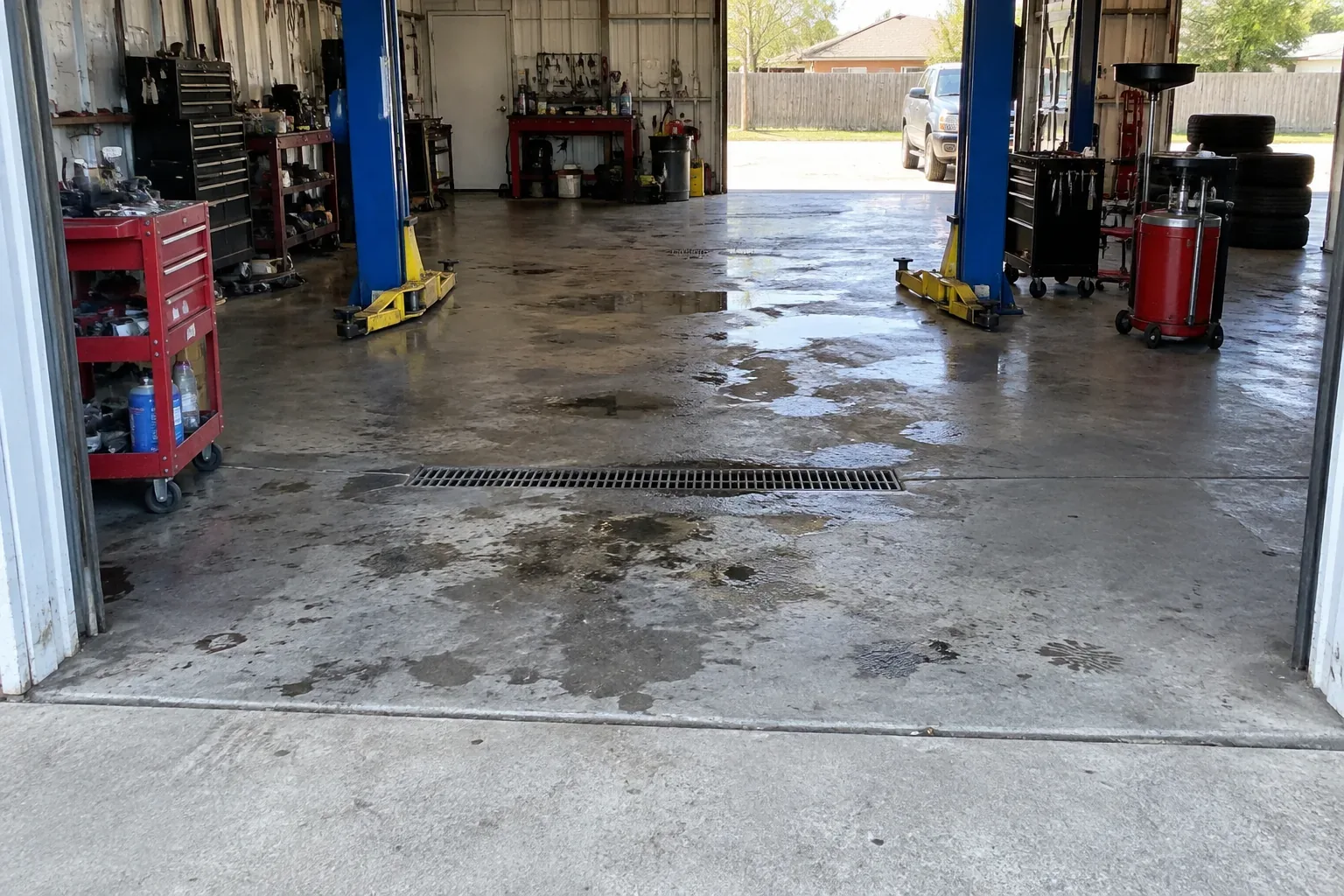

Frank runs a two-bay truck repair shop on a horse lot with a barn and RV bay in Norco, where brake fluid and oil were eating into bare concrete. We recommended a degrease, a full grind, then a quartz broadcast with a chemical-resistant topcoat, done one bay at a time. The two-bay repair shop, about 1,800 sq ft, in high-build epoxy, gray quartz broadcast, chemical-resistant topcoat, came in at an estimated $9,600 to $13,900 over an estimated 3 to 5 days. Spills now wipe up instead of soaking in, and the shop kept one bay running throughout.

Working Nights and Weekends

Dealerships and repair shops in Claremont, Villa Park and North Tustin stay open while we work, because we coat in sections around business hours. A service drive usually closes one section from a Friday evening, takes its basecoat and broadcast overnight, gets its topcoat Saturday, and reopens once the floor reaches park-on strength. Polyaspartic topcoats typically allow walk-on in an estimated 4 to 8 hours and parking in an estimated 24 to 36 hours, while a 100% solids epoxy build needs an estimated 72 to 96 hours before a car rolls back in.

Shop Floor Service Areas

We bid service bay and showroom floors across a 45-mile radius of Riverside, from the dealer rows along the 91 to fleet yards beside the Santa Ana River. Norco, Eastvale and Woodcrest bring truck shops, ranch equipment bays and RV garages, while Diamond Bar, Yorba Linda and Claremont bring independent repair and detail shops. Villa Park and North Tustin owners also call us for private collector garages built to service bay standards.

Request a Bid for Your Shop Floor in Riverside

Request a bid with your bay count, square footage, lift and drain layout and the days your shop can close a section, and we will schedule the floor walk.
